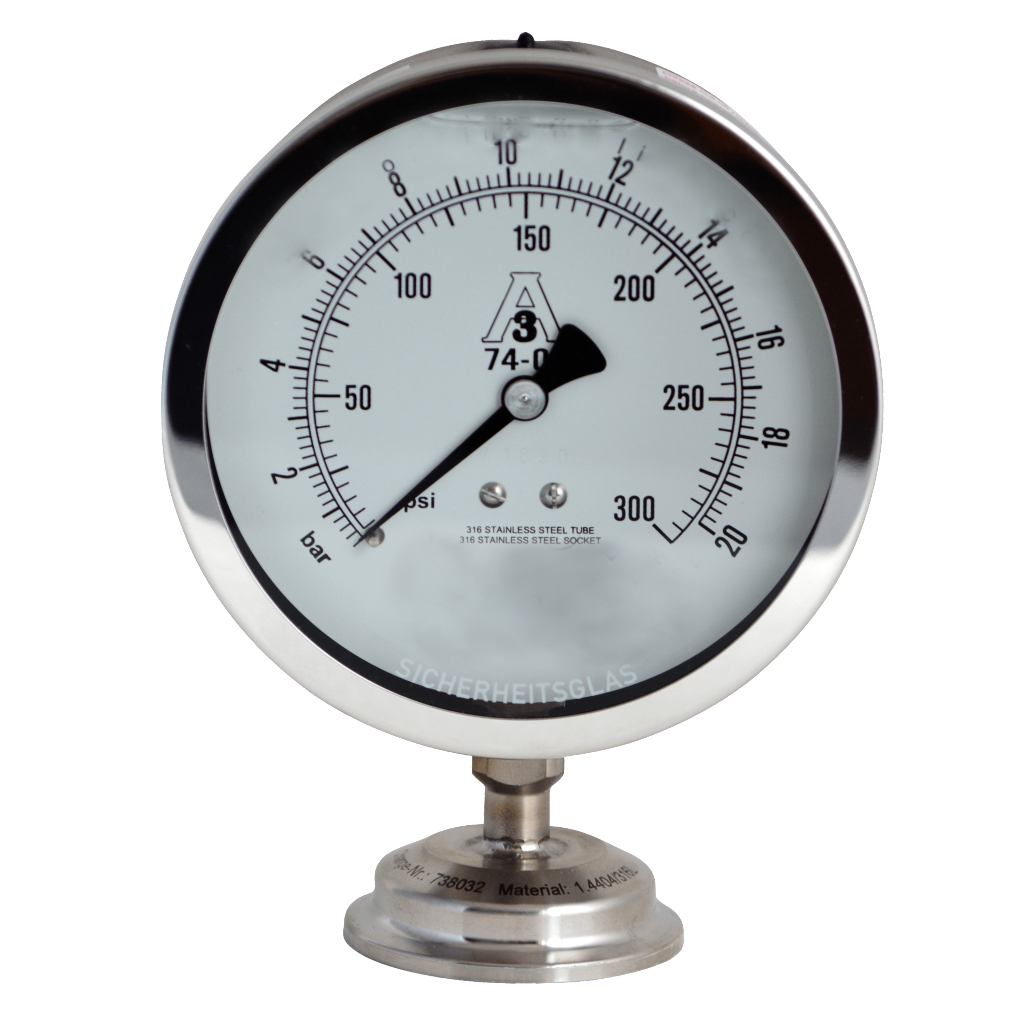

TOP-FLO® Model SP Hygienic Pressure Gauges have been specifically designed for applications in the food and dairy, pharmaceutical, and biotechnical industries.
Sanitary Pressure Gauges (3-A)
These gauges meet 3-A, USDA, and FDA sanitary standards.
Designed to withstand environments from food processing to pharmaceutical plants
Features:
- Designed to withstand environments from food processing to pharmaceutical plants
- Meet 3-A, USDA, and FDA sanitary standards
- Liquid filled to reduce the effect of severe operating conditions such as vibrations and pulsations
- Case: polished AISI 304 SS
- Ring: polished AISI 304 SS
- Dial sizes: 2-1/2″ and 4″
- Process connection (T): polished AISI 316 SS with 1-1/2″ and 2″ clamp connections
- Diaphragm: polished AISI 316 L SS
- Window: laminated safety glass
- Pointer: black anodized aluminum
- Case fill: glycerine
- Seal fill: oil for foodservice
- Process temperature: 150° max
- Accuracy: as a percentage of full scale as per ASME B40.100 ± 1.6%
