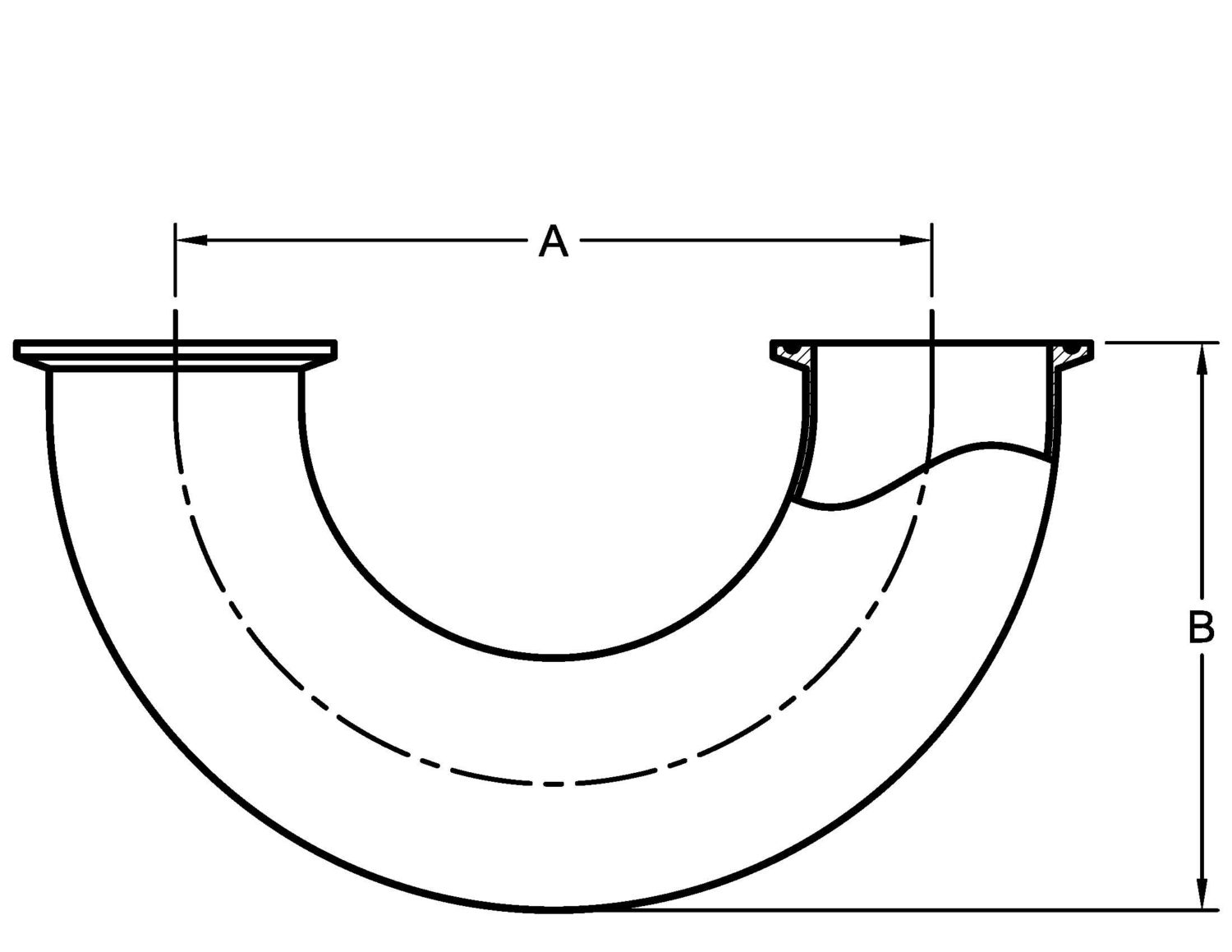

2UMP 180 DEGREE RETURN BEND, CLAMP ENDS
| Part Number | Size (inches) | A | B | STP File | PDF File |
|---|---|---|---|---|---|
| 2UMP-.50 | 1/2 | 1.500 | 1.250 | STP | |
| 2UMP-.75 | 3/4 | 2.250 | 1.625 | STP | |
| 2UMP-1 | 1 | 3.000 | 2.000 | STP | |
| 2UMP-1.5 | 1 1/2 | 4.500 | 2.750 | STP | |
| 2UMP-2 | 2 | 6.000 | 3.500 | STP | |
| 2UMP-2.5 | 2 1/2 | 7.500 | 4.250 | STP | |
| 2UMP-3 | 3 | 9.000 | 5.000 | STP | |
| 2UMP-4 | 4 | 12.000 | 6.625 | STP | |
| 2UMP-6 | 6 | 18.000 | 9.750 | STP |
