Features:
Flange gasket kit available. Flanges are flat face, light duty, 4″ and up have 8 bolt holes (150lb bolt hole pattern all sizes)

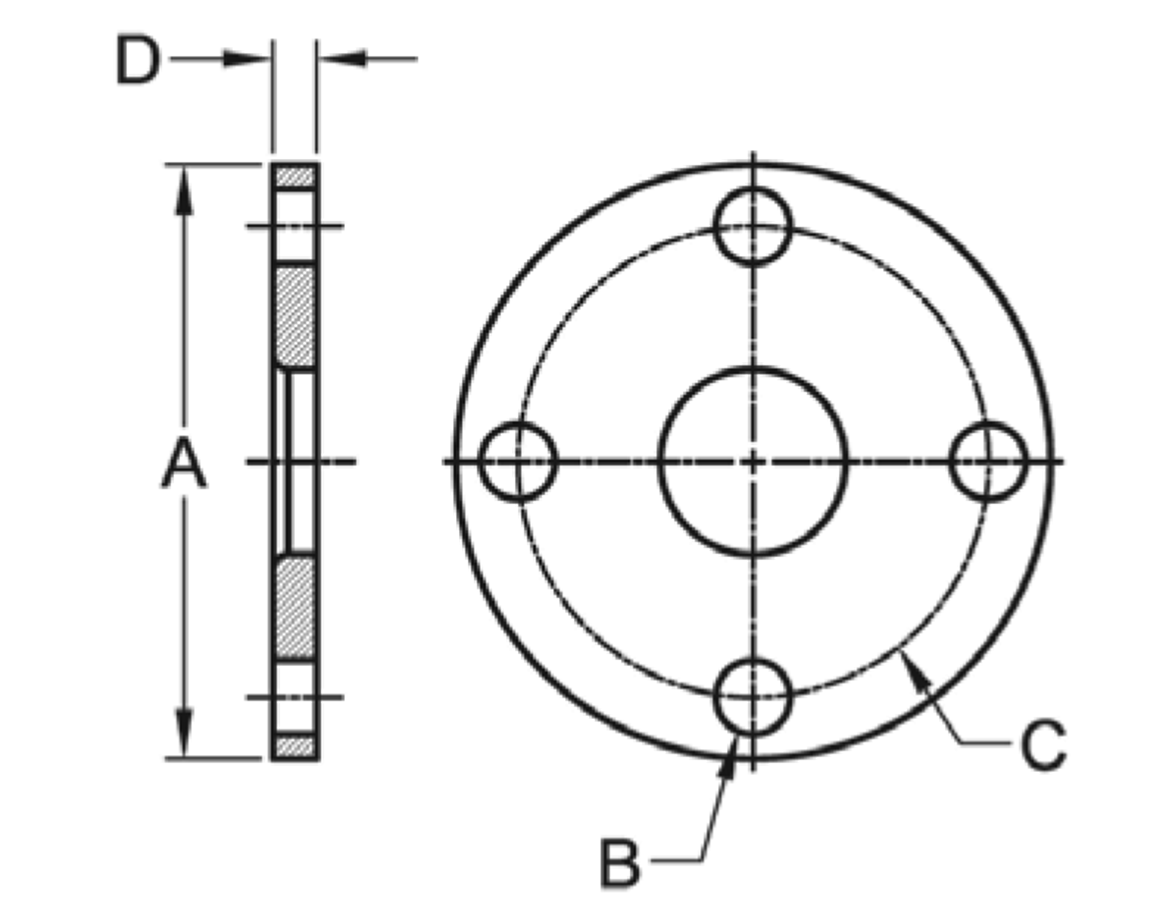

38SL SLIP ON FLANGE
| Part Number | Size (inches) | A | B | C | D | STP File |
|---|---|---|---|---|---|---|
| 38SL-1 | 1 | 4.250 | 0.625 | 3.125 | 0.375 | STP |
| 38SL-1.5 | 1 1/2 | 5.000 | 0.625 | 3.875 | 0.375 | STP |
| 38SL-2 | 2 | 6.000 | 0.750 | 4.750 | 0.438 | STP |
| 38SL-2.5 | 2 1/2 | 7.000 | 0.750 | 5.500 | 0.438 | STP |
| 38SL-3 | 3 | 7.500 | 0.750 | 6.000 | 0.500 | STP |
| 38SL-4 | 4 | 9.000 | 0.750 | 7.500 | 0.500 | STP |
| 38SL-6 | 6 | 11.000 | 0.875 | 9.500 | 0.563 | STP |
| 38SL-8 | 8 | 13.500 | 0.875 | 11.750 | 0.563 |
