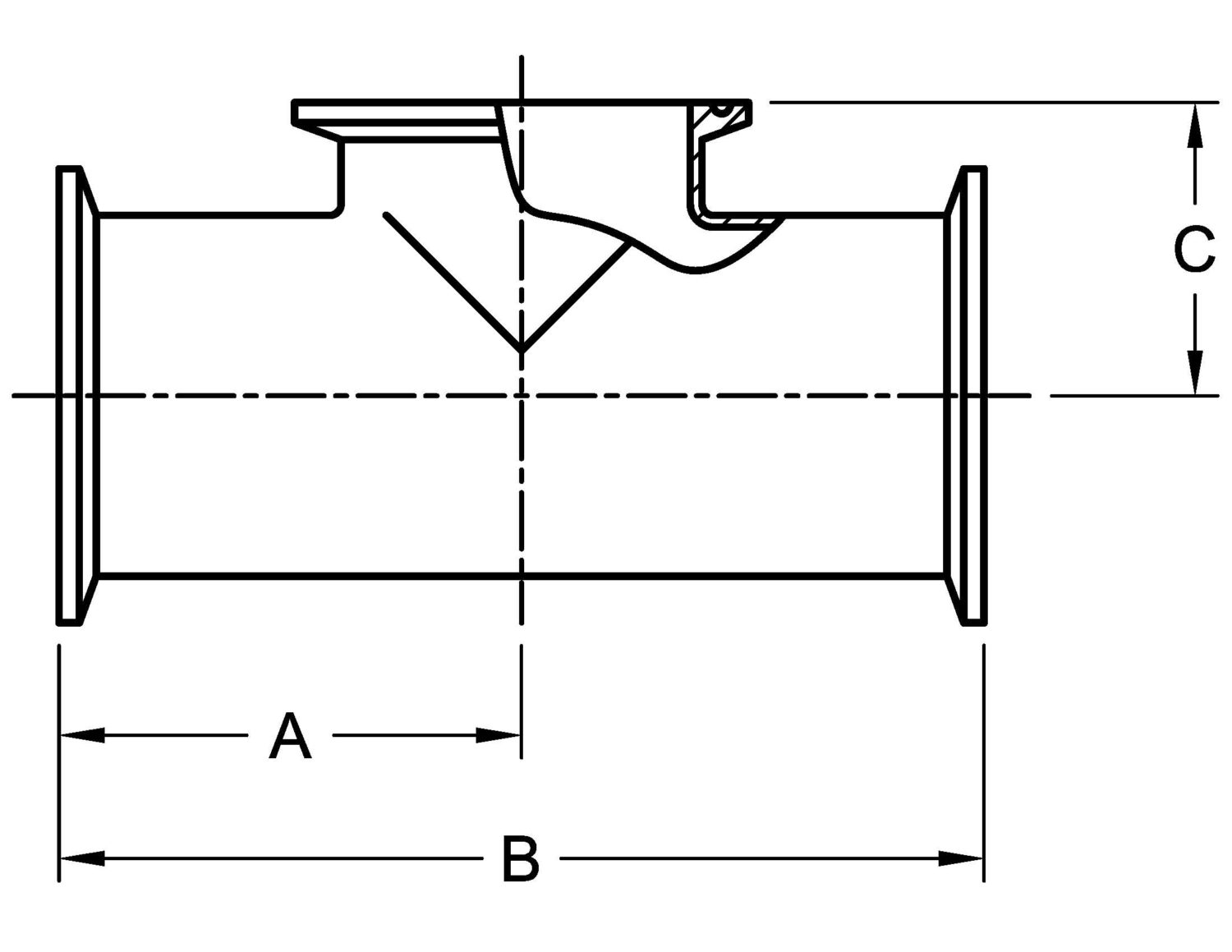

7MPS SHORT OUTLET TEE, CLAMP ENDS
| Part Number | Size (inches) | A | B | C | STP File | PDF File |
|---|---|---|---|---|---|---|
| 7MPS-1 | 1 | 2.375 | 4.750 | 1.125 | STP | |
| 7MPS-1.5 | 1 1/2 | 2.750 | 5.500 | 1.375 | STP | |
| 7MPS-2 | 2 | 3.500 | 7.000 | 1.625 | STP | |
| 7MPS-2.5 | 2 1/2 | 3.500 | 7.000 | 1.875 | STP | |
| 7MPS-3 | 3 | 3.750 | 7.500 | 2.125 | STP | |
| 7MPS-4 | 4 | 4.500 | 9.000 | 2.750 | STP | |
| 7MPS-6 | 6 | 6.375 | 12.750 | 3.875 | STP |
