Features:
Available in other end connections & lengths

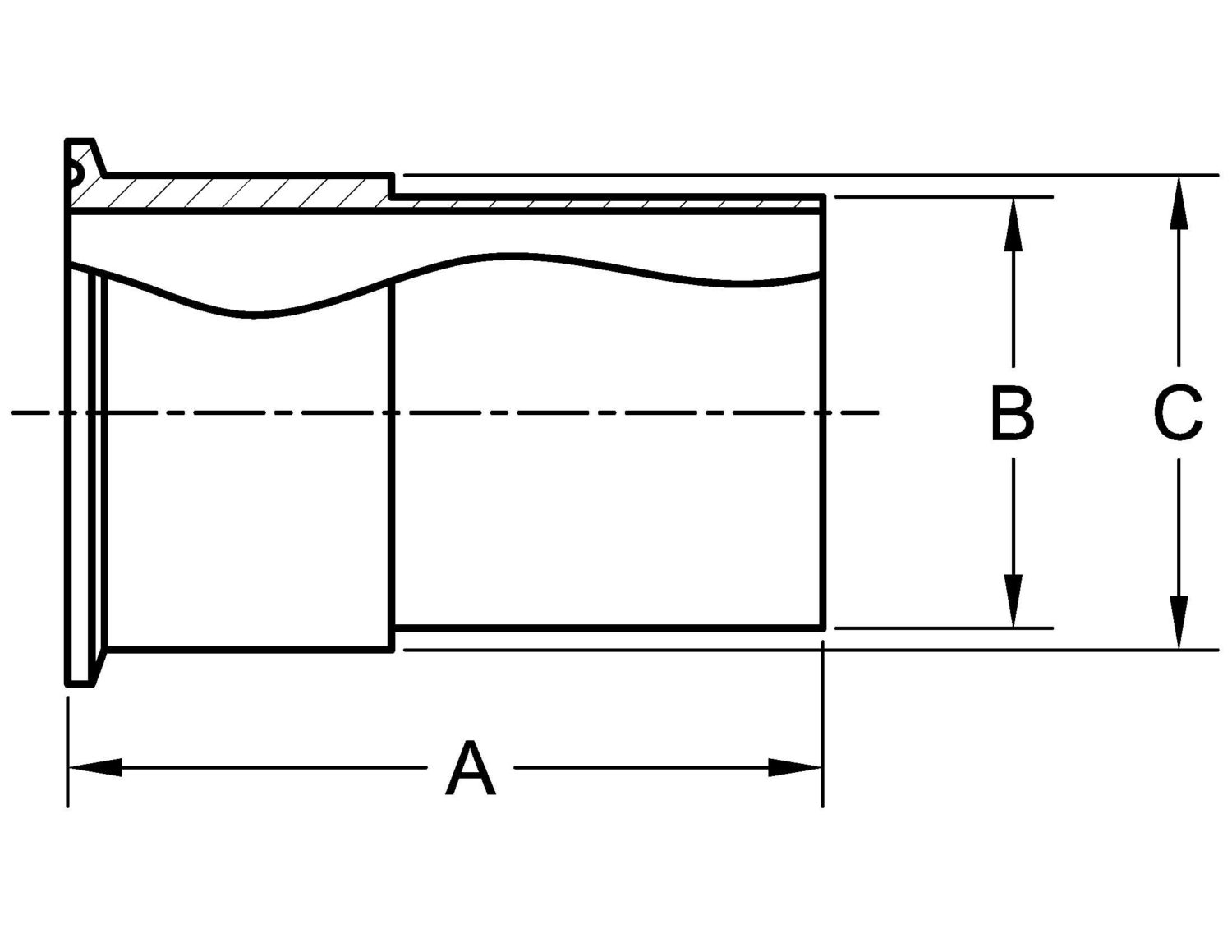

FLOWVERTER FERRULE
| Part Number | Size (inches) | A | B | C | STP File | PDF File |
|---|---|---|---|---|---|---|
| LAB01000 | 1 | 3.500 | 1.000 | 1.200 | ||
| LAB01500 | 1 1/2 | 3.500 | 1.500 | 1.700 | ||
| LAB02000 | 2 | 3.500 | 2.000 | 2.200 | ||
| LAB02500 | 2 1/2 | 3.500 | 2.500 | 2.700 | ||
| LAB03000 | 3 | 3.500 | 3.000 | 3.200 | ||
| LAB04000 | 4 | 3.500 | 4.000 | 4.200 |
