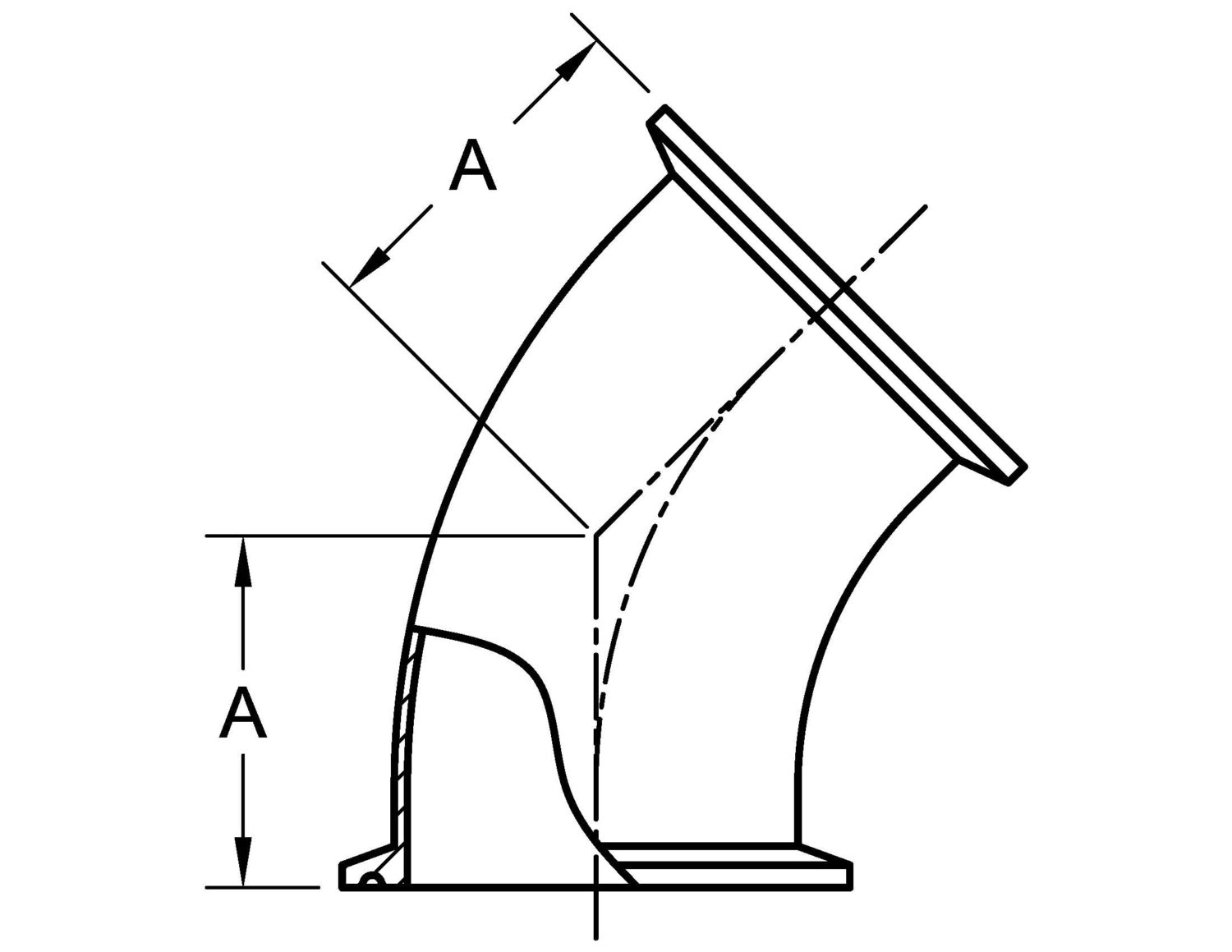

2KMP 45 DEGREE ELBOW, CLAMP ENDS
| Part Number | Size (inches) | A | STP File | PDF File |
|---|---|---|---|---|
| 2KMP-.50 | 1/2 | 0.966 | STP | |
| 2KMP-.75 | 3/4 | 0.966 | STP | |
| 2KMP-1 | 1 | 1.125 | STP | |
| 2KMP-1.5 | 1 1/2 | 1.437 | STP | |
| 2KMP-2 | 2 | 1.750 | STP | |
| 2KMP-2.5 | 2 1/2 | 2.063 | STP | |
| 2KMP-3 | 3 | 2.375 | STP | |
| 2KMP-4 | 4 | 3.125 | STP | |
| 2KMP-6 | 6 | 4.500 | STP |
