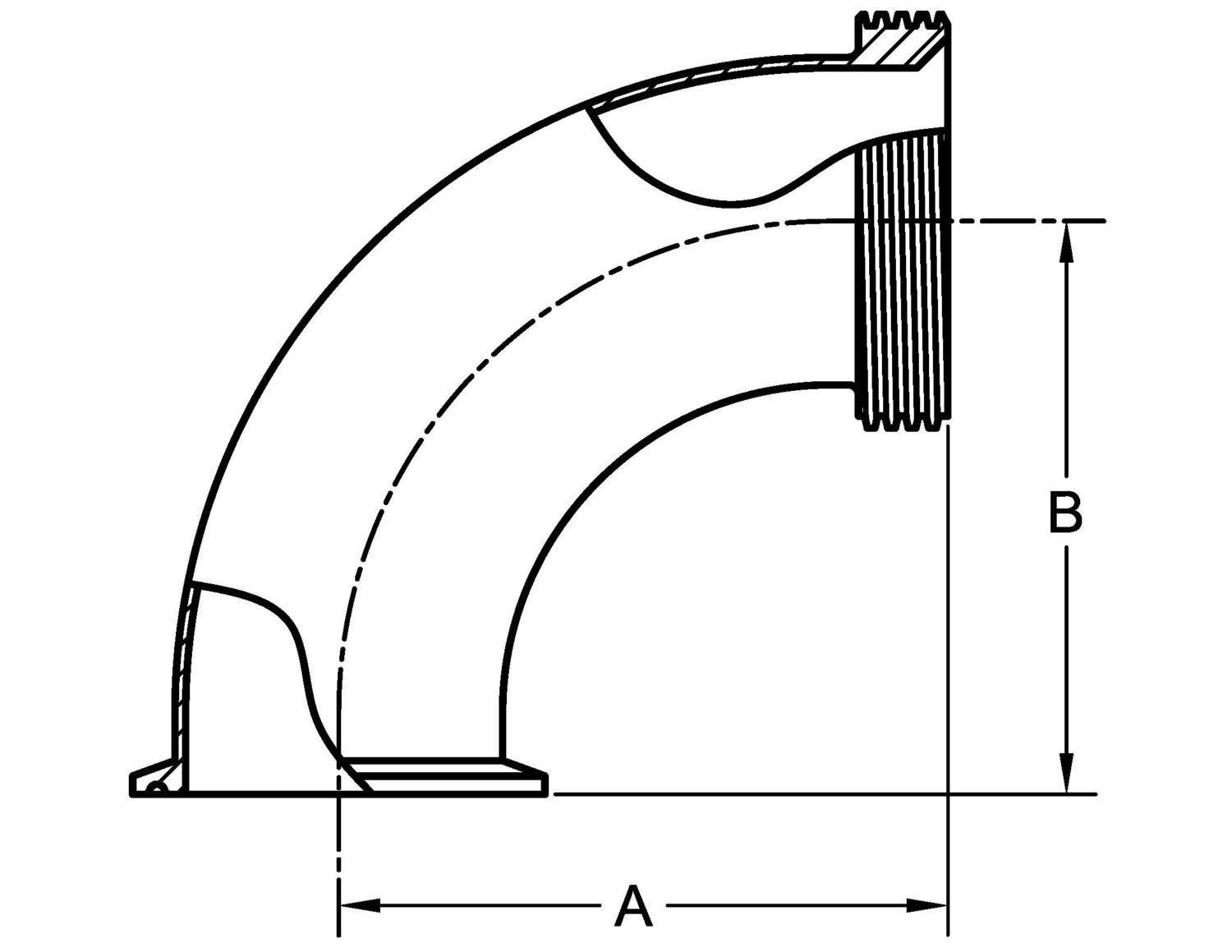

2FMP-15 90 DEGREE ELBOW, CLAMP X THREADED BEVEL SEAT
| Part Number | Size (inches) | A | B | STP File | PDF File |
|---|---|---|---|---|---|
| 2FMP-15-1 | 1 | 2.188 | 2.000 | ||
| 2FMP-15-1.5 | 1 1/2 | 2.969 | 2.750 | ||
| 2FMP-15-2 | 2 | 3.750 | 3.500 | ||
| 2FMP-15-2.5 | 2 1/2 | 4.594 | 4.250 | ||
| 2FMP-15-3 | 3 | 5.438 | 5.000 | ||
| 2FMP-15-4 | 4 | 7.219 | 6.625 |
